0-15m/min Speed 18 Stations Chain Drive Roofing Sheet Roll Forming Machine for Construction

Brand Name : HC

Model Number : HC23-206-824

Certification : CE

Place of Origin : China

MOQ : 1set

Payment Terms : L/C,T/T

Supply Ability : 20 sets/month

Delivery Time : 25-30days

Packaging Details : Main roll forming machine and decoiler is nude packing, PLC control system and motor pump are packed with water proof paper, spare parts in carton box. One set of machine needs a 40GP container.

Material Type : PPGI/GI

Material Thickness : 1-1.2mm

Material Width : 1000mm

Roller Stations : 18Stations

Roller & Shaft Material : 45# Steel Quenching and Plating

Diameter of Shaft : Φ90mm

Cutter Material : CR12

Drive Type : Chain Drive

Speed : 0-15m/min

Total Power : 11+11+7.5KW

Voltage : 380V 50Hz 3Phases(can be customized)

Contact Now

Speed 0-15m/min Roofing Sheet Roll Forming Machine

This high-performance roofing sheet roll forming machine is engineered for construction material production, featuring variable speed control from 0-15 meters per minute. Our extensive experience in cold roll forming technology ensures reliable performance for industrial applications.

Company Expertise

We specialize in manufacturing roll forming machinery for construction materials including C/Z purlin, roof/wall panels, metal deck, stud & track, shutter doors, and PU panels. With advanced production equipment and a professional engineering team, we deliver high-efficiency, flexible, and cost-effective solutions for the cold roll industry.

Applications

Industry	Applications
Construction	Steel-structure warehouses, plants, supermarkets, shopping malls, stadiums, hotels, villas
Industrial	Automotive, HVAC, material handling, mining, transportation
Commercial	Display industry, store fixtures, fencing, lighting
Agricultural	Farming, greenhouses, lawn & garden

Technical Specifications

Parameter	Specification
Material Type	PPGI/GI
Material Thickness	1-1.2mm
Material Width	1000mm
Roller Stations	18 Stations
Roller & Shaft Material	45# Steel Quenching and Plating
Material Diameter	Φ90mm
Cutter Material	CR12
Drive Type	Chain Drive
Speed	0-15m/min
Total Power	11+11+7.5KW
Voltage	380V 50Hz 3Phases (customizable)

Machine Components

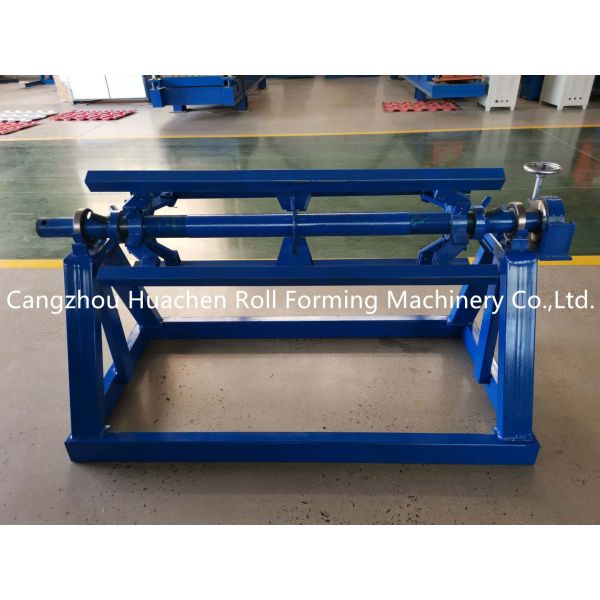

5T Manual Decoiler

0-15m/min Speed 18 Stations Chain Drive Roofing Sheet Roll Forming Machine for Construction

Supports coil rotation with 5T bearing capacity. Adjustable for 470-530mm inner diameter. Includes brake device for impact protection during operation.

Feeding Table & Pre-Cutter

Guides coil into correct position with hand-pull cutting device for color or thickness changes.

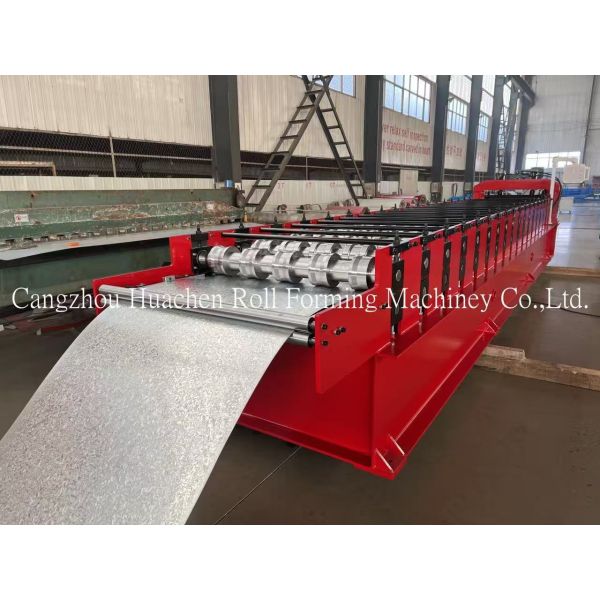

Shaft & Roller Assembly

45# steel quenching and plating ensures smooth, hard, rust-free rollers that prevent sheet scratching.

Hydraulic Pump Station

Drives cutter operation using 46# hydraulic oil. Features internal circulation cooling with Huade solenoid valve.

Touch Screen Control Cabinet

Automatic and manual operation modes. Programmable sheet length and quantity. Electrical components: Delta VFD & PLC, Delixi circuit breakers & contactors.

Pressing Section & Cutter

CR12 blade material provides high strength, excellent hardenability, and superior wear resistance.

Output Table

Collects formed products with roller-equipped bracket to prevent scratching during forwarding.

Spare Parts Included

Component	Quantity
Chains	2 Sets
Solenoid Valve	1 Set
Travel Switch	2 Sets
Open-End Wrenches	2 Sets
Hexagon Wrench	2 Sets
Counter	1 Set
Wrench	2 Sets
Oil Seals	1 Set

Additional Product Images

Key Advantages

Automatic control software for productive information management
High integrated network improves system automaticity
Excellent performance in operation, maintenance, and debugging
Easy loading and unloading procedures
Superior quality manufacturing standards
Timely delivery and responsive service
Competitive pricing structure
Comprehensive after-sales support
